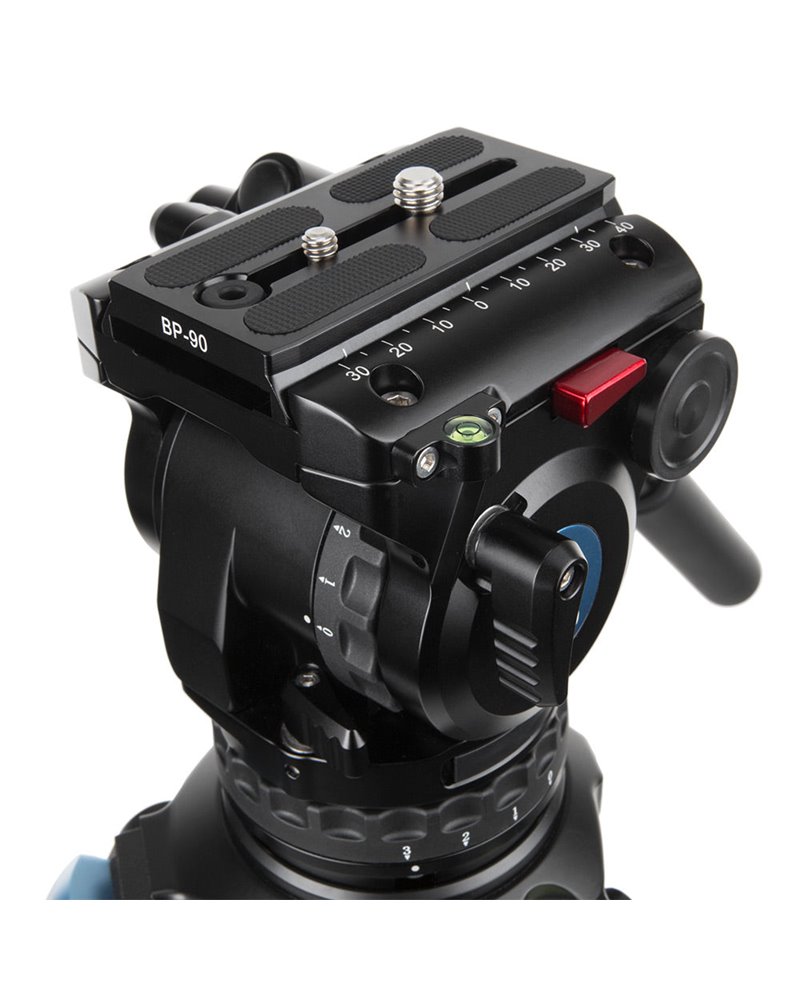

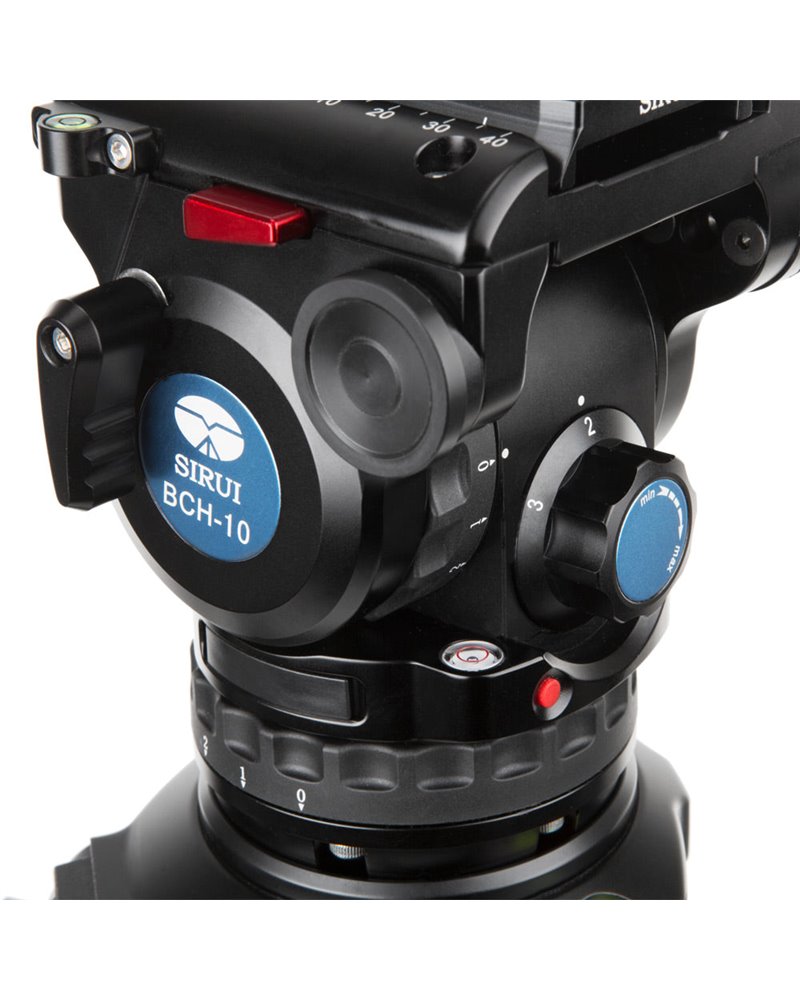

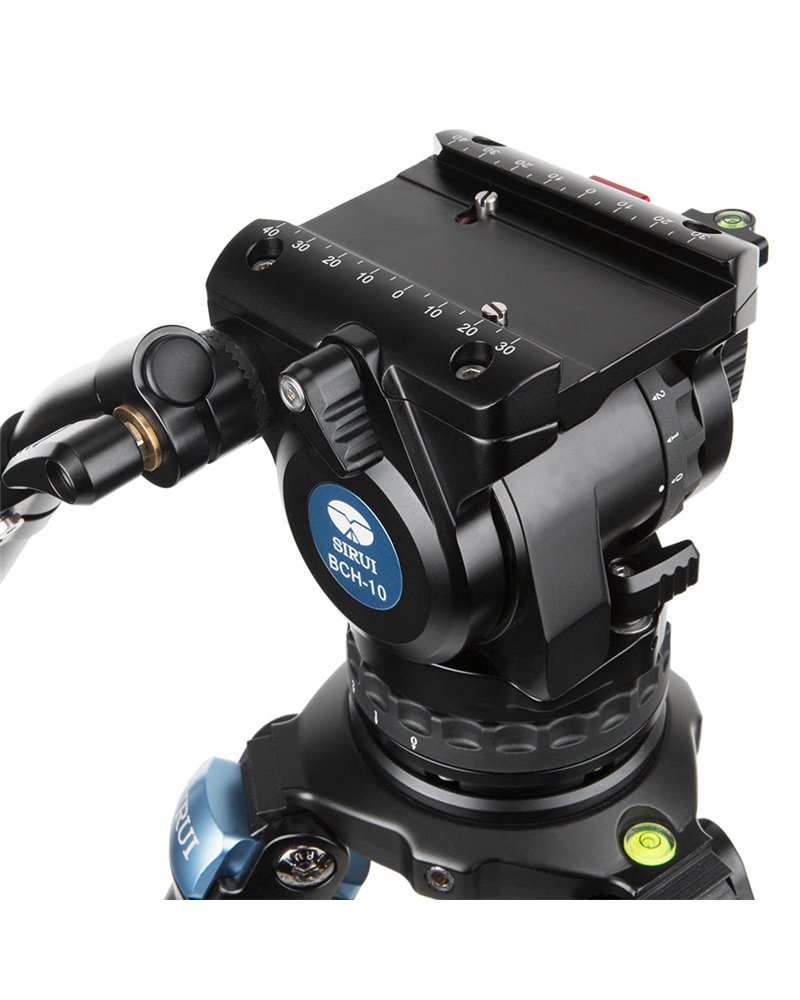

Sirui BCH-10 Fluid Video Head for BCT tripods

With maximum load capacity of up to 6kg, this fluid video duct head was designed for video cameras and DSLRs. Thanks to the fluid system with the separately adjustable friction for swiveling and tilting, it enables a soft, calm and vibration -free camera work. The Safety Lock System prevents the alternating plate prevents accidental slipping. For a precise alignment, there is a leveling body at the top and bottom, the lower one is equipped with lighting (battery included). The counterweight compensation (Counterbalance) can be set in three levels of 3-6kg.

The safety lock system serves as a safety and that the assembly plate can only be removed backwards. The assembly plate BP-90 has a rubberized contact surface of 90x41mm, has 2x 1/4 inches and 2x 3/8 inch thread screws for attaching cameras.

The BCH-10 is with the 75mm level ball on tripods with one 75mm half -shell mounted. With the 75mm hemisphere, the head can be aligned and quickly fixed. Frictional setting for tilted, plus 0 position without friction
– Safety Lock System- prevents slipping of the plate
– 1 level lobes above, 1 leveling relibybell at the bottom (illuminated)
– rubberized swivel arm- >- 3 levels of counterweight compensation adjustable of 3-6kg
– tripod connection: 75mm hemisphere
– alternating plate BP-90 shiftable with scale on the head

Technical data head
Tendency: -65 ° to +90 °
Counterweight compensation (counter balance): 3-6kg
hemisphere diameter: 75mm
swivel arm length: from 30-47cm
max. Resilience: 6kg
Dimensions LXBXH (with handle): 90 (385) x 149 x 312mm
Weight: 1.8kg
Material: aluminum
Technical data alternating plate
2x 1/4 and 2x 3/8 inch thread screws
Gleitweg: 90mm
Dimensions LXBXH: 90 x 51 x 12mm
Weight: 66g
Material: aluminum

For video activity with a 75mm half-shell
Scope of delivery
1x Sirui BCH-10 Fluid VideoNeiger
1x Sirui BP-90 Change plate
1x transport bag
*tripod not included in the scope of delivery
