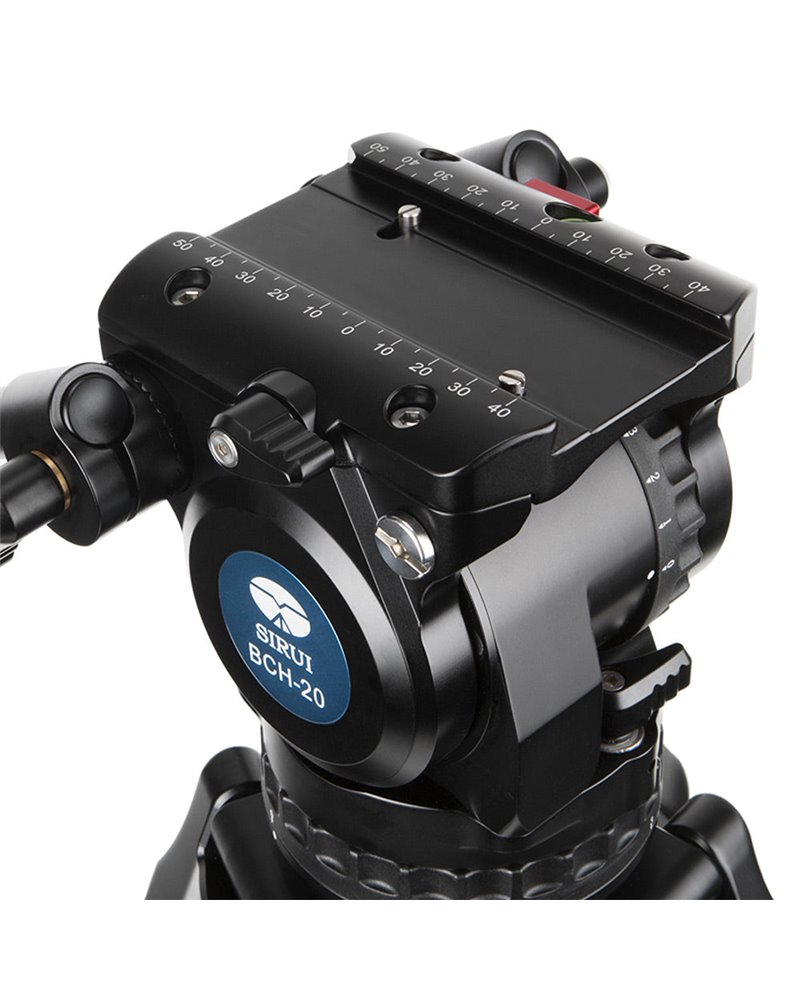

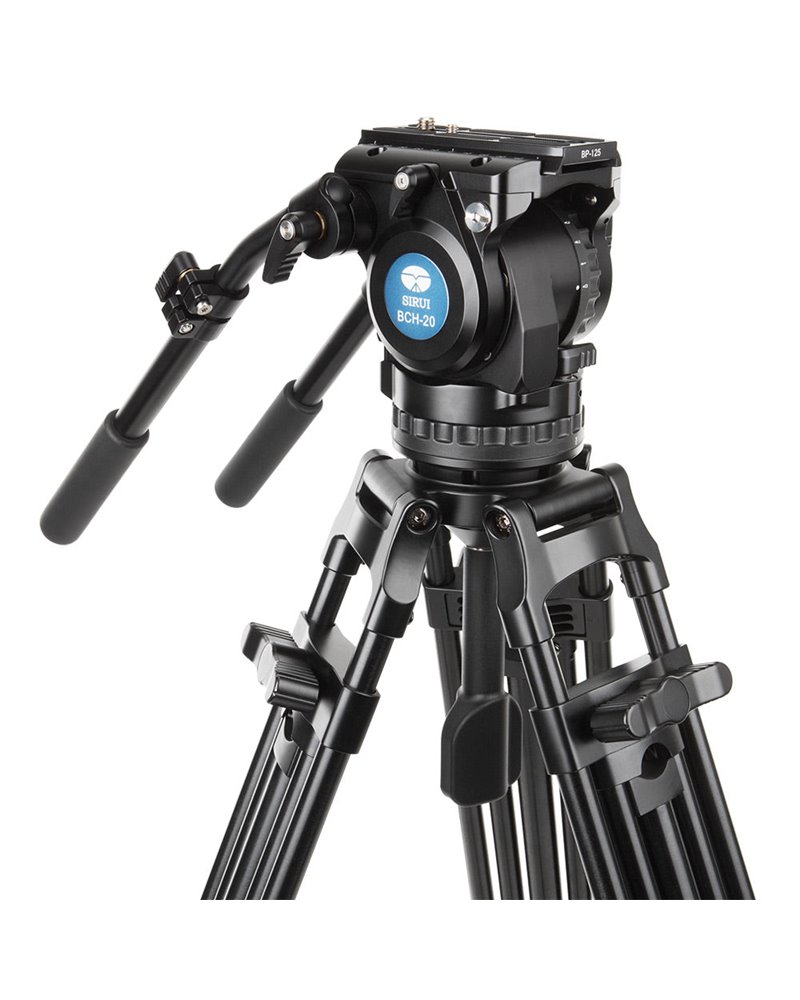

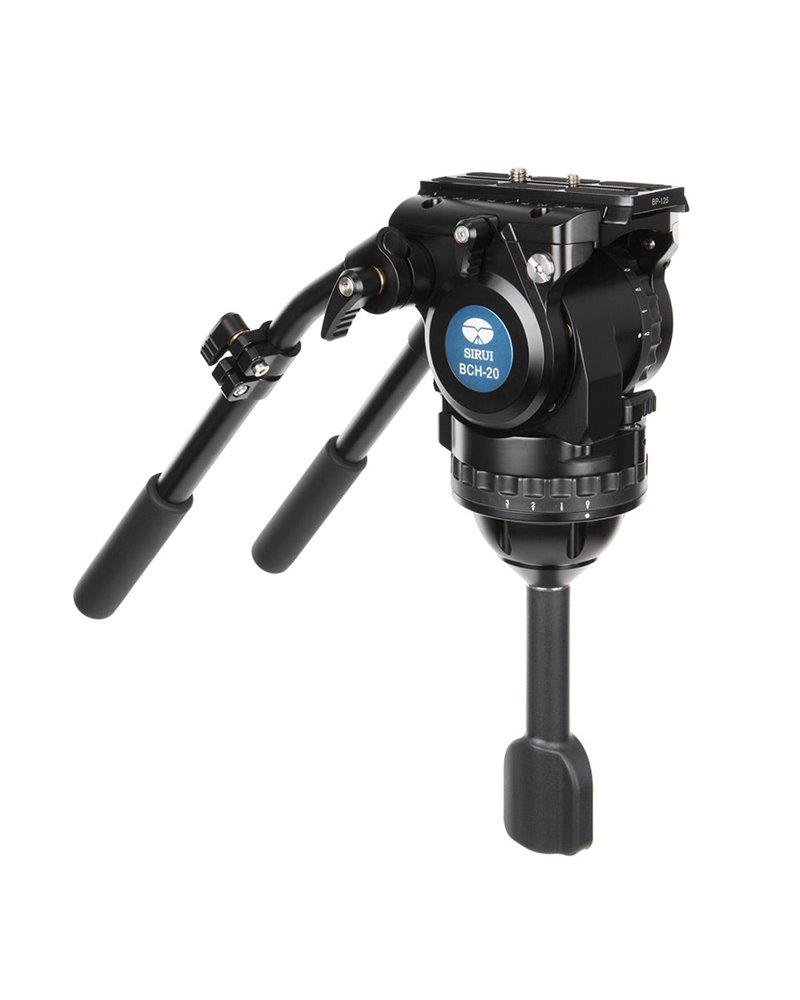

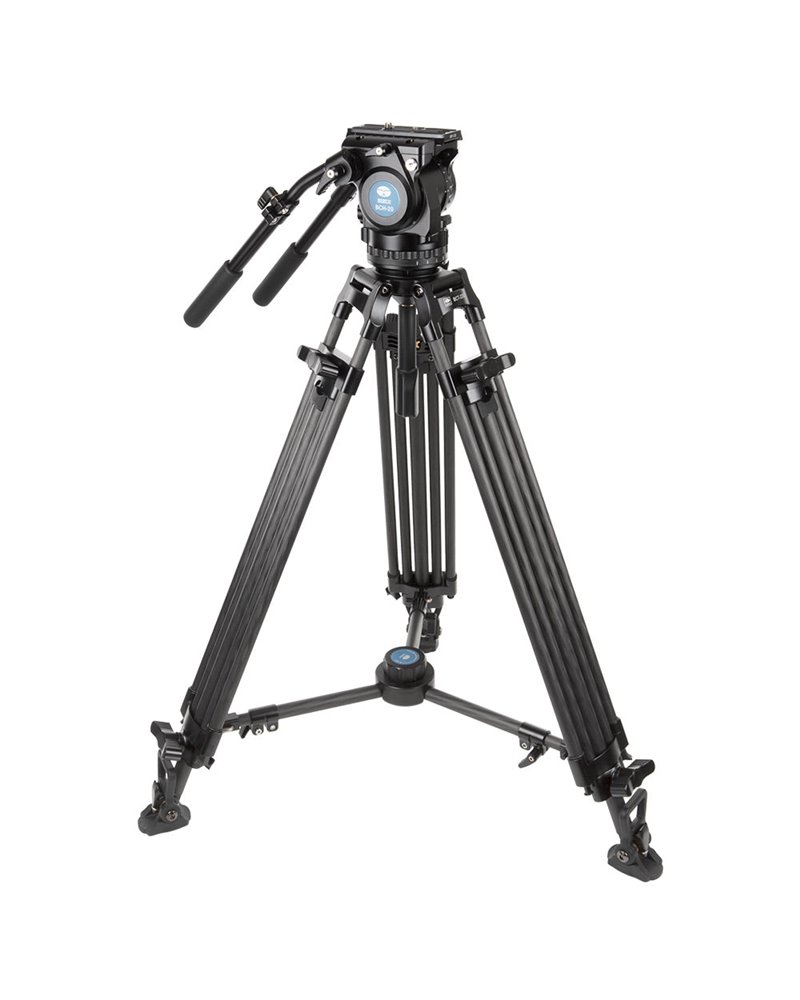

Sirui BCH-20 Fluid Video Head for BCT tripods

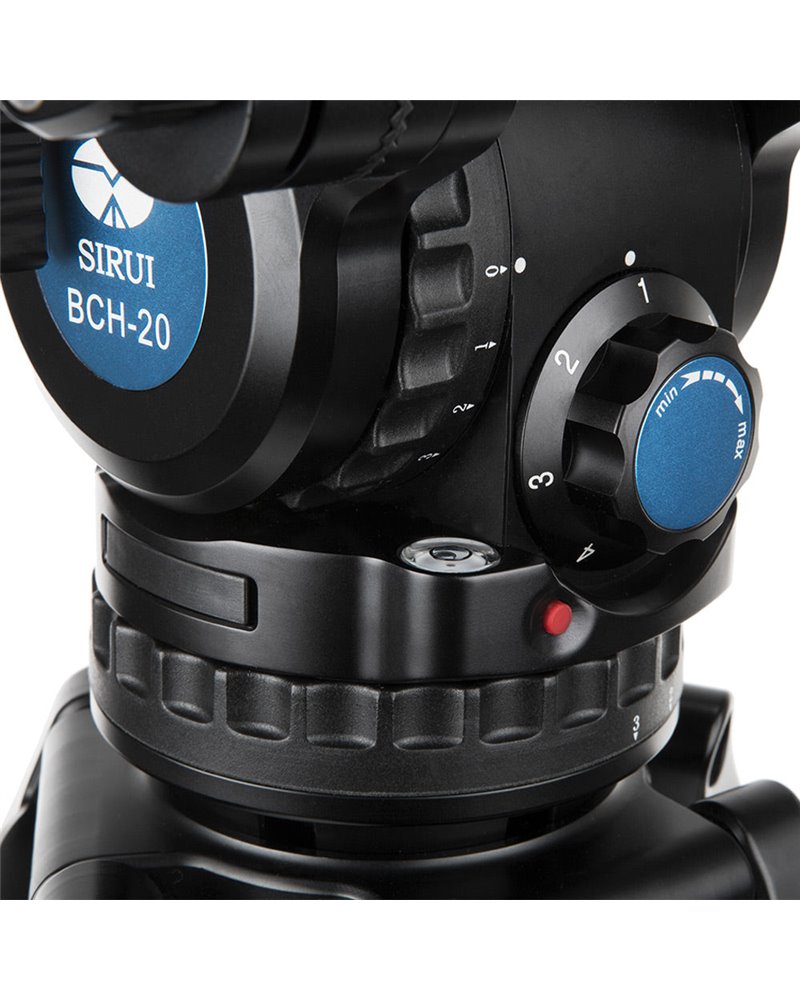

With maximum load capacity of up to 6kg, this fluid video dome head for video cameras and DSLRS was designed. Thanks to the fluid system with the separately adjustable friction for swiveling and tilting, it enables a soft, calm and vibration -free camera work. The Safety Lock System prevents the alternating plate prevents accidental slipping. For a precise alignment, there is a leveling body at the top and bottom, the lower one is equipped with lighting (battery included). The counterweight compensation (Counterbalance) can be set in three levels of 3-6kg.

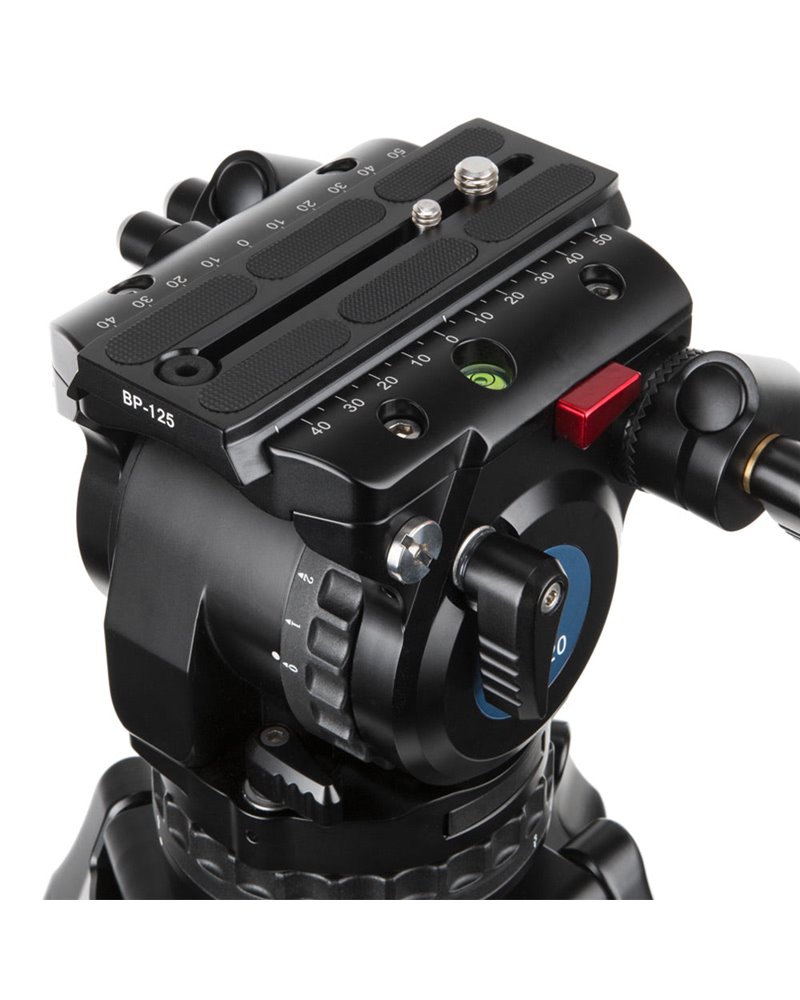

The safety lock system serves as a safety and that the assembly plate can only be removed backwards. The assembly plate BP-125 has a rubberized support surface of 125x41mm, has 2x 1/4 inches and 2x 3/8 inch thread screws for attaching cameras.

The BCH-20 is with the 75mm level ball on tripods with one 75mm half -shell mounted. With the 75mm hemisphere, the head can be aligned and quickly fixed. Frictional setting for tilted, plus 0 position without friction
– Safety Lock System- prevents slipping of the plate
– 1 level lobes above, 1 leveling relibyle below (illuminated)
– 2 rubberized swivel arms- can be extended from 30-47cm – 7 levels of counterweight adjustable from 3-6kg
– tripod connection: 75mm hemisphere
– Change plate BP-125 shiftable with scale on the head
Technical data head
Inclination: -65 ° to +90 °
counterweight compensation (counter balance): 3-10kg
hemisphere diameter: 75mm
swivel arm length: from 30-47cm
max. Resilience: 10kg
Dimensions LXBXH (with handle): 125 (400) x 188 x 338mm
Weight: 3.1kg
Material: aluminum

Technical data alternating plate
2x 1/4 and 2x 3/8 inch thread screws
sliding path: 125mm
Dimensions LXBXH: 125 x 51 x 12mm
Weight: 110g
Material: aluminum

Compatibility
For video activity with a 75mm half-shell

Scope of delivery
1x Sirui BC > 1x Sirui BP-125 Change plate 125mm
1x transport bag
*Stod not included in the scope of delivery
