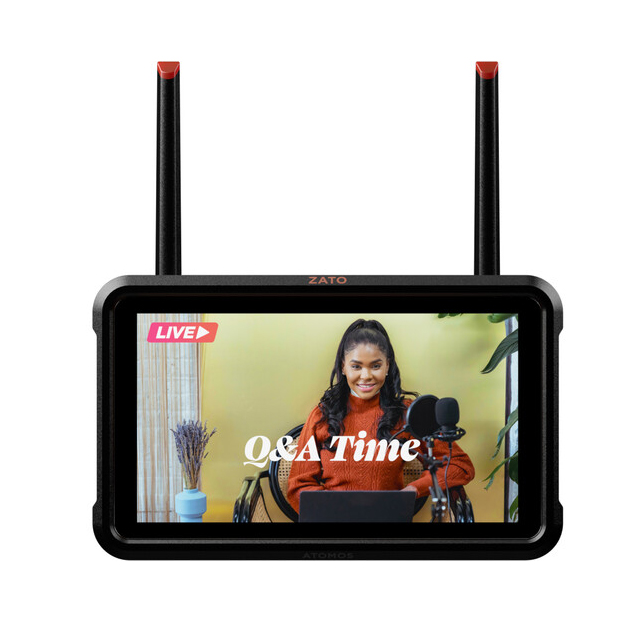

Atomos Zato Connect – 5” HDMI/USB-UVC Livestream Recording Monitor
370,00 €
Διαθέσιμο κατόπιν παραγγελίας
Simultaneously stream and record HDMI and USB video with the ZATO CONNECT from Atomos and its 1920 x 1080 resolution 5.2″ touchscreen display. The ZATO CONNECT works as a gateway to the ATOMOS Cloud Studio software thanks to its Wi-Fi 5, Gigabit Ethernet, and cellular hot spot connectivity. This allows you to fully customize your livestreaming experience by switching between video sources and mixing different audio sources—all with a single, compact device small enough to mount on a DSLR camera rig.
One HDMI input, one HDMI output, and two corresponding USB Type-C ports can transform various video equipment into livestream or webcam sources. The ZATO CONNECT can record up to 1080p60 HDMI video and up to 1080p30 USB video. One 3.5mm audio input integrates a microphone or line source, which can be easily mixed with the embedded HDMI or USB signals thanks to the ZATO’s audio mixer. AtomOS Lite software further customizes your recordings and streams with effects and frame guides to reinforce your branding. Power to the device can be achieved with an L-series battery or via the USB Type-C PD input.
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ
| Panel Type | IPS-Type LCD |
| Display Size | 5.2″ / 13.2 cm |
| Video I/O | 1 x HDMI 1.4 Input 1 x HDMI 1.4 Output 1 x USB-C Input 1 x USB-C Output |
| Embedded Audio | HDMI/: 2-Channel |
| Audio I/O | 1 x 1/8″ / 3.5 mm Input 1 x 1/8″ / 3.5 mm Output 1 x 1/8″ / 3.5 mm Headphone Output |
| Power I/O | 1 x USB-C Input |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) [128 GB Maximum] |
| File System Support | exFAT |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
| Bluetooth | None |
| Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| IP Video | H.264: 1280 x 720 to 1920 x 1080 |
| IP Audio | AAC-LC: |
| Transport Protocols | RTMP, RTMPS |
| DC Input Power | 6.2 to 16.8 VDC |
| Battery Type | 1 x L-Series |
| Power Consumption | 20 W |
| Mounting | 2 x 1/4″-20 Female |
| IP Rating | None |
| Material of Construction | Polycarbonate |
| Dimensions | 5.9 x 3.6 x 1.2″ / 151 x 91.5 x 29.5 mm |
| Weight | 8.6 oz / 245 g |
| Package Weight | 1.65 lb |
| Box Dimensions (LxWxH) | 7.75 x 5.75 x 3.5 |
